here is to announce a little feature nobody has asked for:

basically you can now write a value/spread to any pin of a running vvvv-patch from the outside. sick? yes.

the plugininterface now allows you to write to any pin which is in turn used by a new node called Server (VVVV)node which listens for your udp/osc-messages and distributes received values to the targeted pins, like so: /40/30/2/Y Input Value 2.4,2.5,2.6 sending the above osc-message to the vvvv-servers port will set the Y Input Valuepin of the node with ID 2 which sits in patch with ID 30 which sits in patch with ID 40 to a spread of: 2.4 2.5 2.6 see? should allow you to quite mess around..

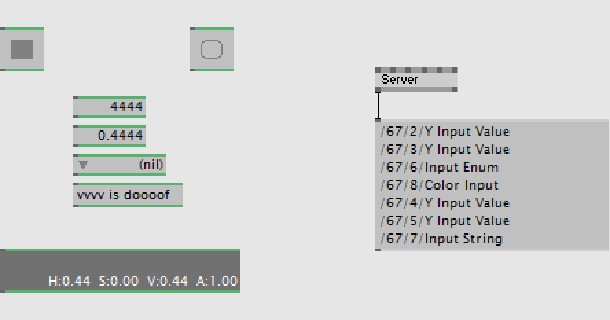

now of course you don’t want to do this all random and find out about the target-addresses manually. as mentioned in a previous posting refactor-to-subpatch there is one primary shortcut left on vvvvs keyboard cheat-sheet which we saved for this moment: ctrl+k (read “kontroll”) allows you to expose selected IOBoxes for being controlled from the outside. first exposing only turns IOBoxes green, but inside this sets a flag on the node that can be accessed via the plugininterface which e.g. allows a node like the afformentioned Server (VVVV) to return a list of all exposed pins’ osc addresses…

next it would be nice to write values to such exposed IOBoxes from, say a mobile device. this is where Kontrolleur (VVVV)node steps in. essentially just an alternative, more specialized vvvv-server that pushes information about exposed pins to the Kontrolleur android app. check its help-patch for instructions.

and like Kontrolleur (VVVV) it could also make (even more) sense to code a plugin that communicates with Control (which seems to be in quite a rework for some time now so i didn’t dare touch it) or one that exposes pins via even other protocols (http, whatnot..)

all necessary functionality (reading of/writing to pins, listing exposed pins,…) is accessible via the plugininterface. you know what to do..

now available in latest alpha builds.
